Our MIDI Line Driver and Receiver set has been specifically designed for use in the television industry and incorporates several broadcast specific features.

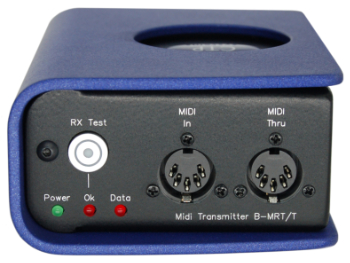

The transmitter unit has a standard MIDI DIN input with a fully buffered MIDI through output.
The transmitter has a green power LED and when DATA is transmitted a bright red
The data LED flashes to indicate data pass through.
The transmitter incorporates a receiver test button which, when pressed, sends a test code to the receiver. The 'OK' LED on the transmitter will only illuminate if the test code is echoed back to the transmitter. Perfect for a confidence test.



The receiver does not require a power supply as it is line powered by the transmitter.
It also includes a power LED and a data LED.

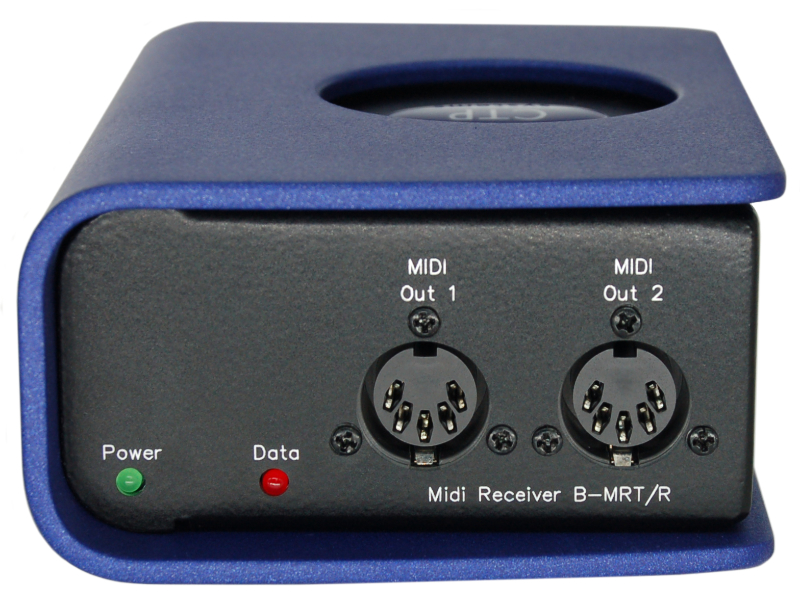

The receiver supplies two buffered MIDI outputs.
The receiver will automatically switch phase if the connecting cable is out of phase.
The data connections will withstand both short circuit and up to 60 volts D.C. providing full protection against accidental phantom power connection.

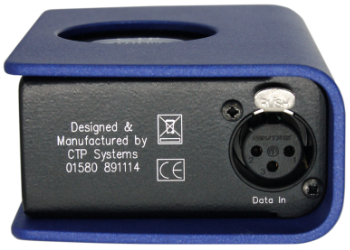

XLR input and output for data connection.
Maximum distance between the transmitter and receiver is in excess of 400 metres using reasonable quality connecting cable.

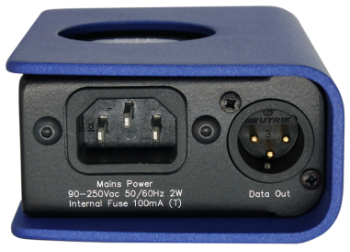

Mains supply IEC inlet internally fused.
As standard the unit operates from 230VAC but can be supplied 115Vac on request.

Dimensions: Transmitter 85mm wide, 35mm high, 160mm deep. Receiver 85mm wide, 35mm high, 110mm deep.
