Timecode clock TCC08, DA/reader TC6

Please note that these units are now supplied with front and rear panels in blue sparkle finish.


Housed in a 2RU rack mount case, the TCC08 reads longitudinal time code and displays it on big red 2 inch LED matrix characters, readable from across the control room. A switch is included on the front panel to blank the frames display if required.



Features include:
  • Balanced XLR timecode input.
  • Frame blank switch.
  • 110-260 Vac 50/60 Hz operation.
Please contact us for alternative case options.

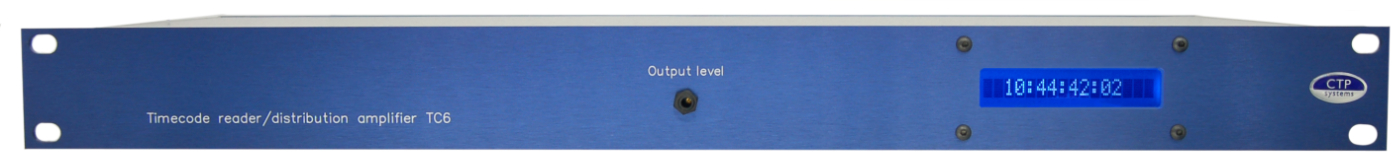

The TC6 is a one input, six output longitudinal timecode distribution amplifier with a built in time code reader.
The unit may be positioned in the VT area of a truck where the LCD timecode readout gives confidence that the timecode supply is valid.
DA output level is adjustable on the front panel.

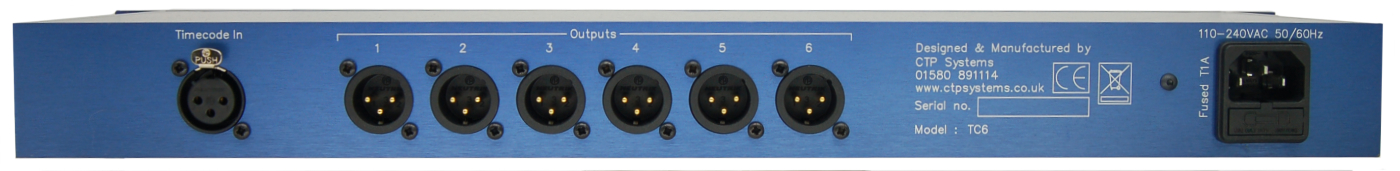

The TC6 has an XLR input and XLR outputs and will operate on 110-260 Vac 50/60 Hz.
