Please note that all of these units are now supplied with front and rear panels in blue sparkle finish.
This is a busy page so please be sure to scroll down to the bottom. As
well as the monitor units shown on this page we have built literally hundreds
of custom monitor units for our customers. Please contact us with your
requirements.

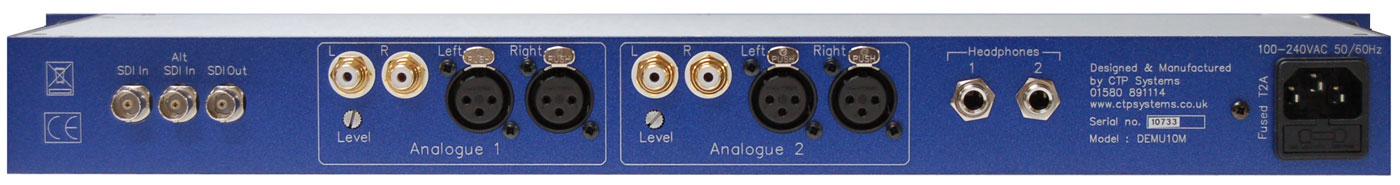

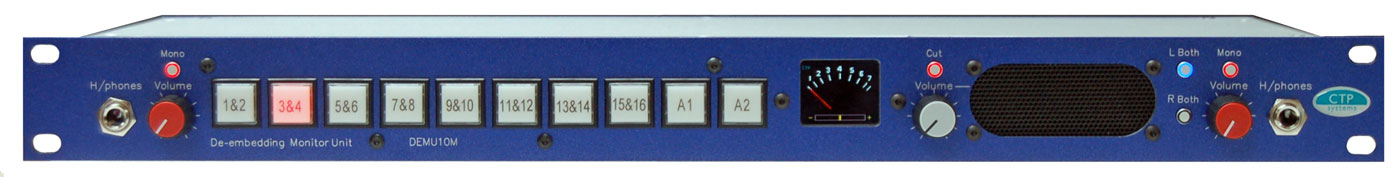

This unit is an updated version of our DEMU10M and now includes a programmable delay (0-4 frames in one field steps) and the metering may be switched to show as stereo 'analogue' TFT display with phase meter or dual bargraph. This de-embedding monitor unit has instant access to all 8 stereo pairs and also two stereo analogue inputs.
Primarily designed for headphone monitoring it also includes a mono speaker.
Both sets of headphones have individual volume controls and may be switched to mono mode. Left or right channels may be switched to both ears. Headphone outputs on front and rear.
The two stereo analogue inputs accept either unbalanced phono or balanced XLR inputs with gain adjust.
This unit will auto switch between SDI, HD and 3G inputs and has an SDI output.

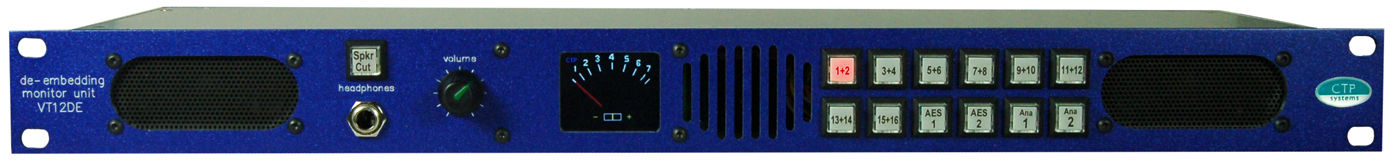

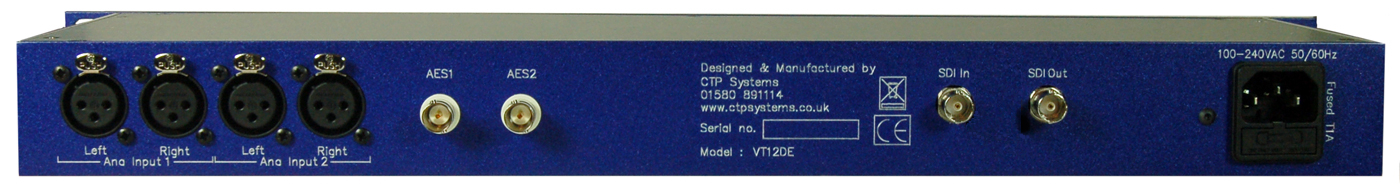

The VT12DE monitors all 16 embedded channels in stereo pairs, two AES inputs and two stereo analogue inputs. It includes
a separate bass driver and is suitable for use anywhere quality monitoring
is required in a small space.
This unit will auto switch between SDI, HD and 3G inputs and has an SDI
output. The VT12DE is fitted with our stereo TFT 'analogue'
style PPM meter with phase display. The unit includes a speaker cut button
and stereo headphone outputs all shoe-horned into a 150mm deep 1RU case.

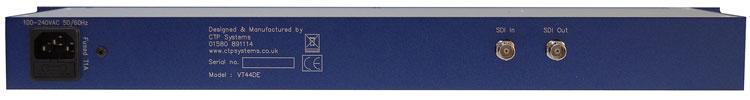

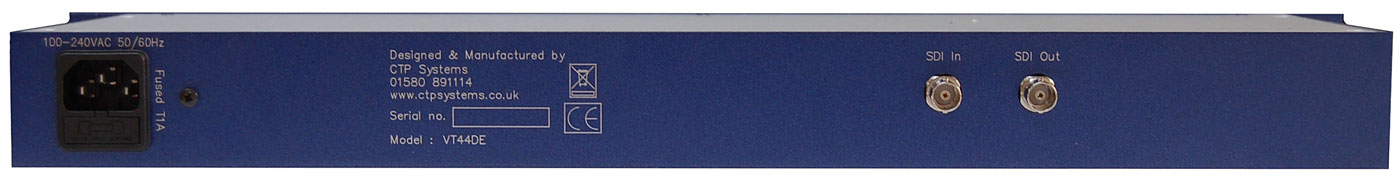

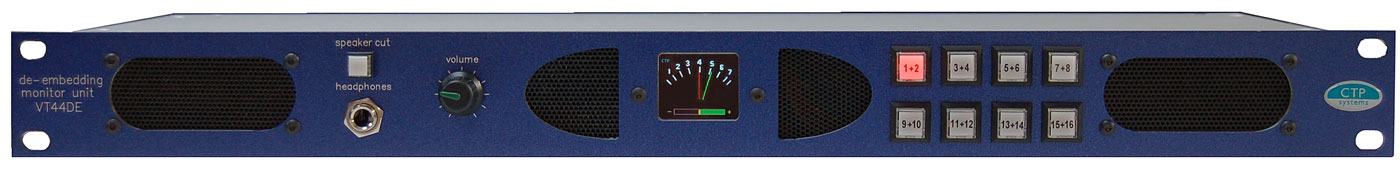

This monitor unit can de-embed all 16 channels in stereo pairs. It includes
a separate bass driver and is suitable for use anywhere quality monitoring
is required in a small space.
This unit will auto switch between SDI, HD and 3G inputs and has an SDI
output. The VT44DE is fitted with our stereo TFT 'analogue'
style PPM meter with phase display. The unit includes a speaker cut button
and stereo headphone outputs in a 1RU case.

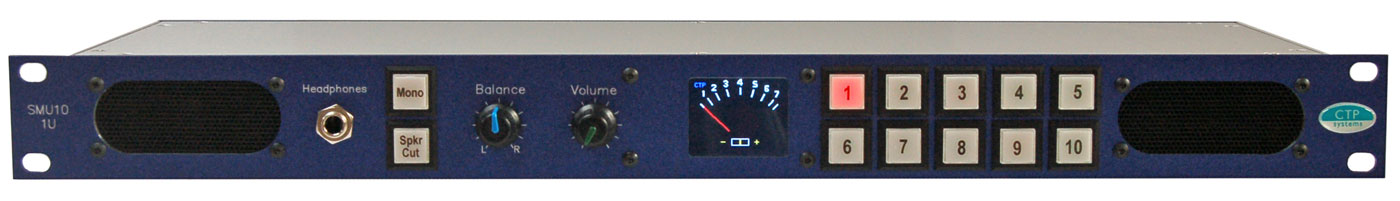

This 1RU version of our SMU10 monitoring unit features a stereo 'analogue' style stereo TFT PPM meter, 10 stereo inputs with volume and balance control and a stereo headphone output.

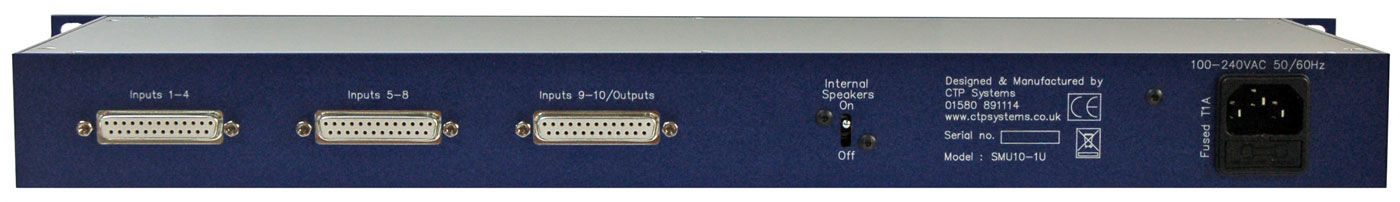

The unit has stereo post volume control outputs on the rear for external active speakers. The internal speakers may be switched off on the rear. The front speaker cut switch mutes both internal and external speakers. The SMU10-1U also has pre-volume control switched outputs.
This stereo unit was originally designed for VTR monitoring and requires
only 1RU of rack space.
The VT33 is available with either two(VT33bss2) or four (VT33bss4) stereo
inputs.
This monitor unit has left and right midrange/high frequency speakers with a separate
bass driver.
It can be supplied with either two or four stereo input selector buttons
and is available with separate left and right volume controls or one stereo
volume control,
There is a speaker cut button and a stereo headphone output.
All inputs are on XLR connectors.
The VT33 is supplied in a 1U rack mount case, only 150mm deep.

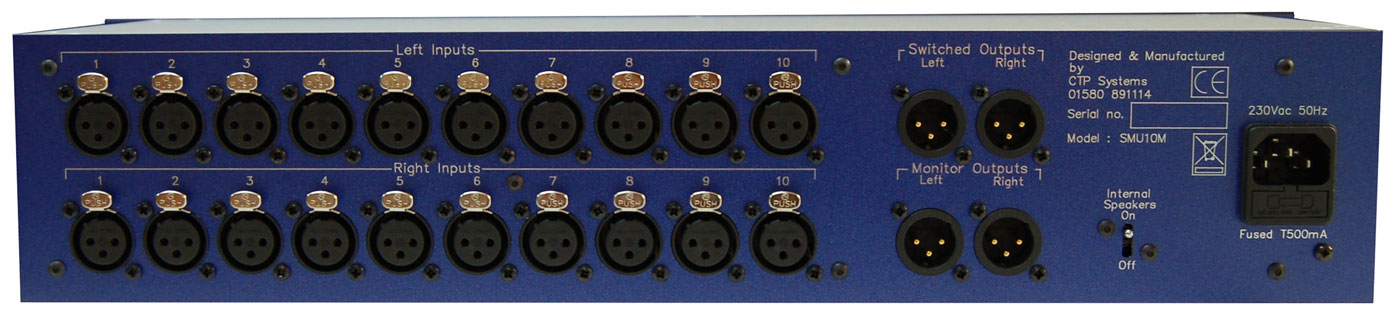

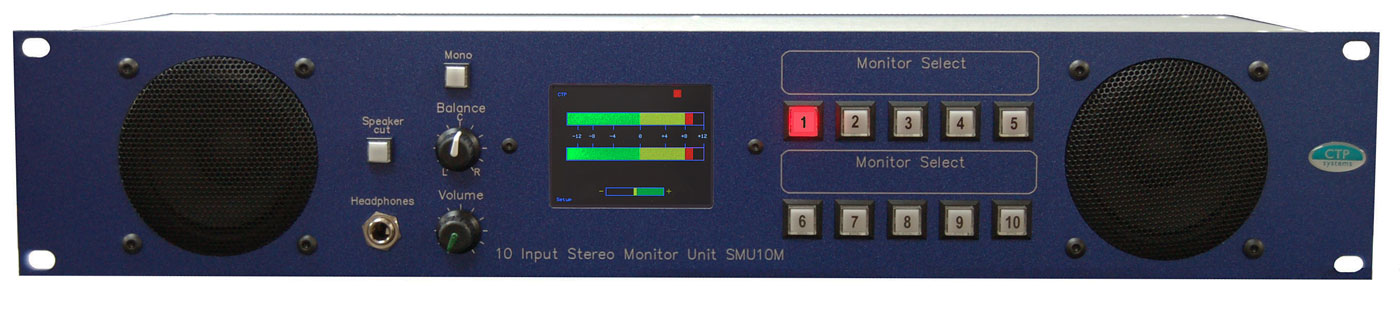

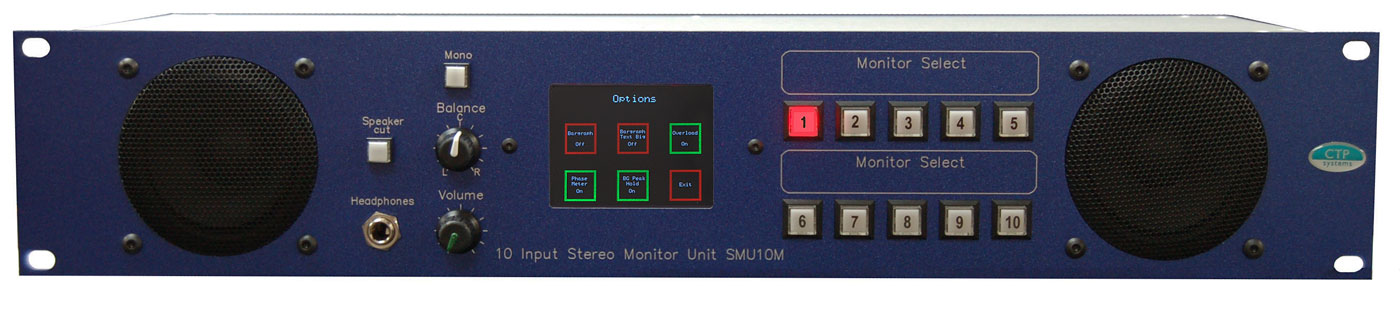

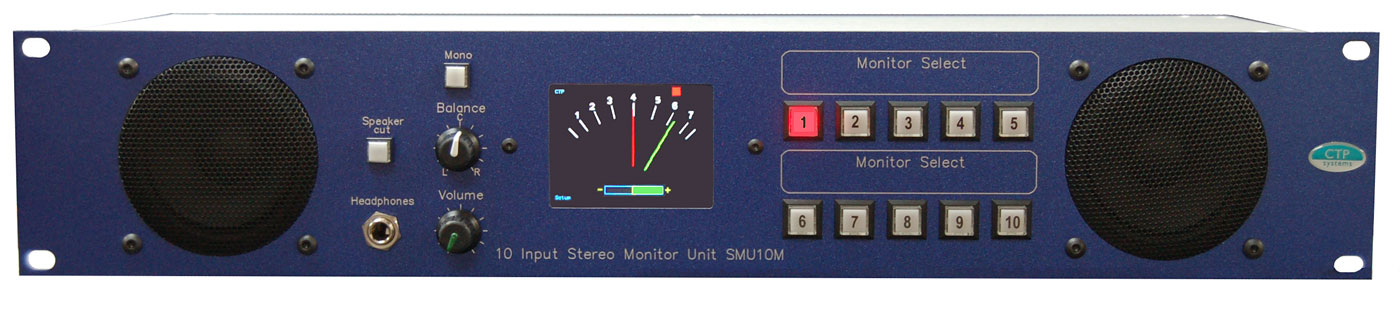

The SMU10M has 10 stereo analogue inputs and is the first unit to show
off our new 2.8 inch 'analogue' style stereo PPM metering.
The meter may have it's parameters changed using the TFT touchscreen
display.
It can be switched between analogue and bargraph mode, both with
PPM ballistics.
With a phase meter at the bottom and a peak level indicator, with
peak hold on the bargraph display, this is a very flexible meter.
The unit has fixed level switched outputs and post volume control outputs
with internal speaker cut for use with external monitoring.
There is a speaker cut button operating on both internal and external
speakers and a headphone output.

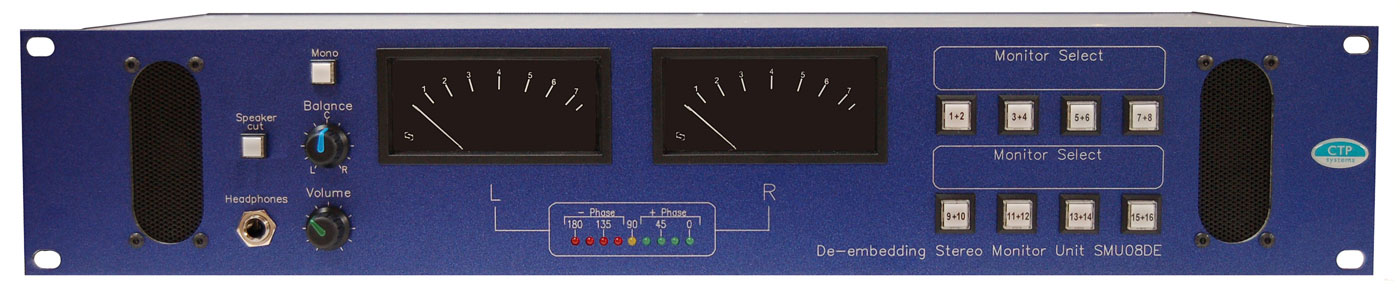

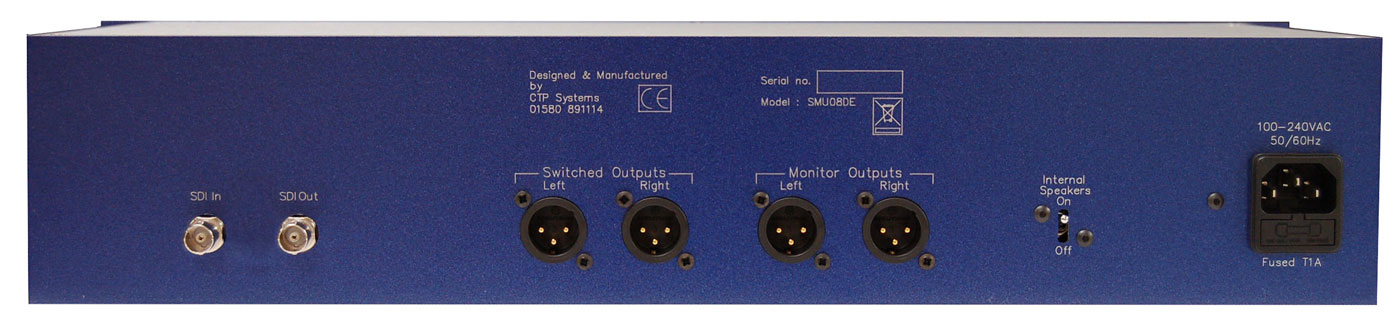

This SMU08DE de-embeds standard SDI, HD or 3G video signals with auto
switching between modes. There is one SDI input with a loop through and
an alternative input which the unit will automatically switch to should
the primary feed fail or be disconnected.
The unit includes standard PPM metering and a phase meter. Audio inputs
are switched in stereo pairs. There are line level outputs both pre and
post volume control so the unit may be connected to external powered speakers
with local volume control and speaker cut. The balance control may be
used to mute left or right channels or even to adjust the balance....
This 2RU unit is only 150mm deep.

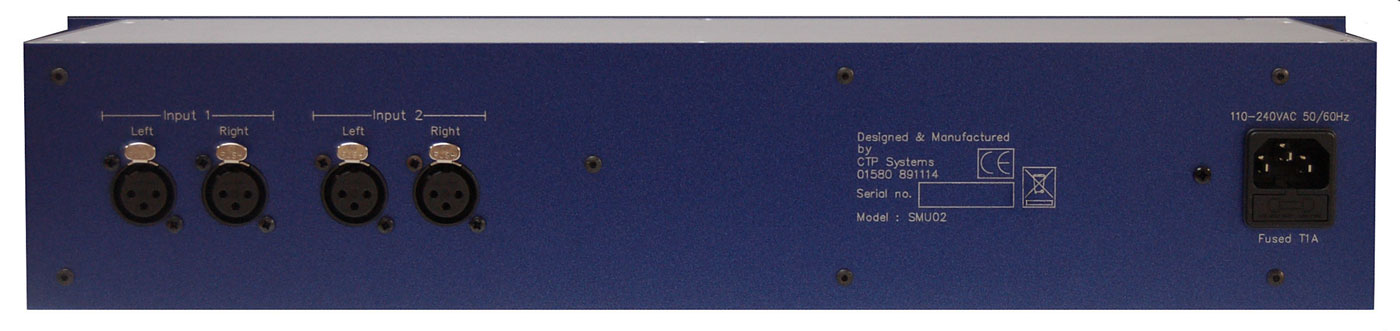

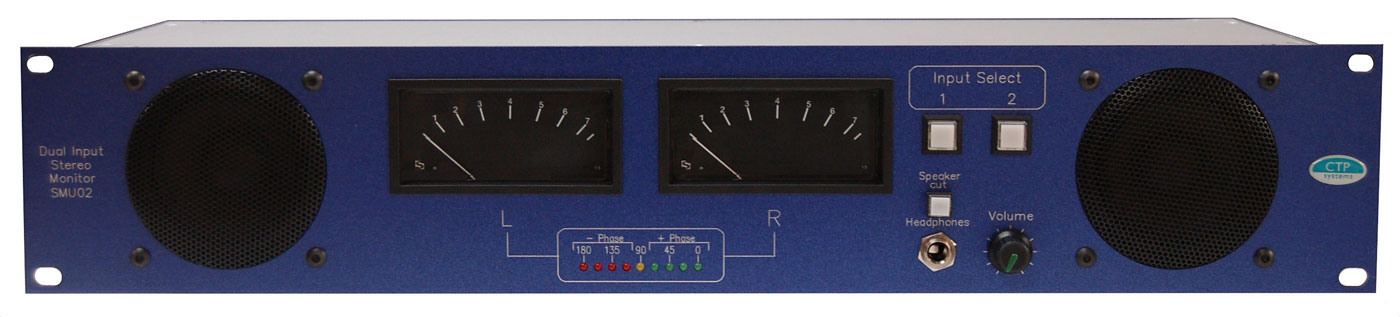

A simple but quality two stereo input analogue monitor unit. Two broadcast
quality PPM meters, two decent speakers, a phase meter, a speaker cut
switch and a headphone output. What more to say?
A 2RU init, 150mm deep.

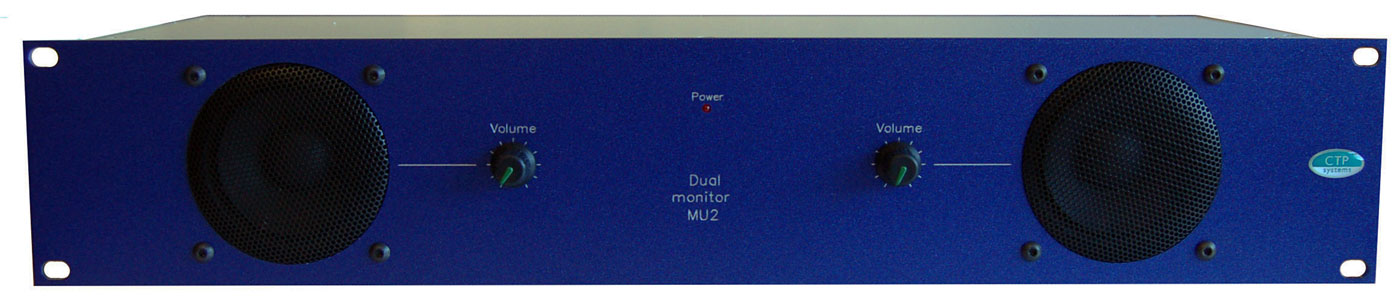

Simply two speakers, two power amplifiers and two volume controls. Use
for a stereo input or two mono inputs. Sounds good too.
2RU and 150mm deep.
This unit is particularly flexible in that it's possible to listen to left and right
of two different audio channels at once, even in different groups. The
unit includes our innovative OLED analogue style PPM meters.
The DM28 will de-embed audio from SDI, HD or 3G sources with automatic
switching.
Features Include:
- External monitoring outputs.
- Rear panel speaker cut for when used with external monitors
- Front panel volume control and speaker cut also control the monitor
outputs.
- Headphone jack automatically cuts internal and external speakers.
- Fully buffered SDI/HD/3G output
- Headphone socket accepts stereo and 316 jacks.
- 2U rack mount case.

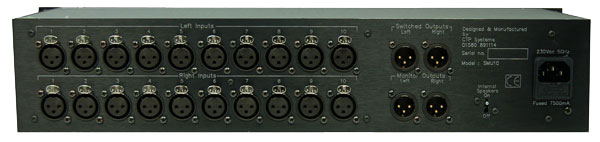

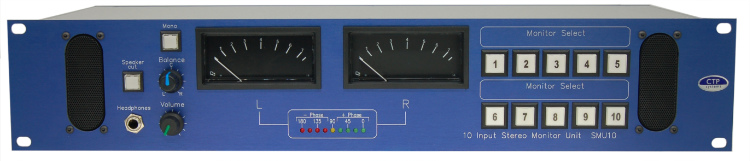

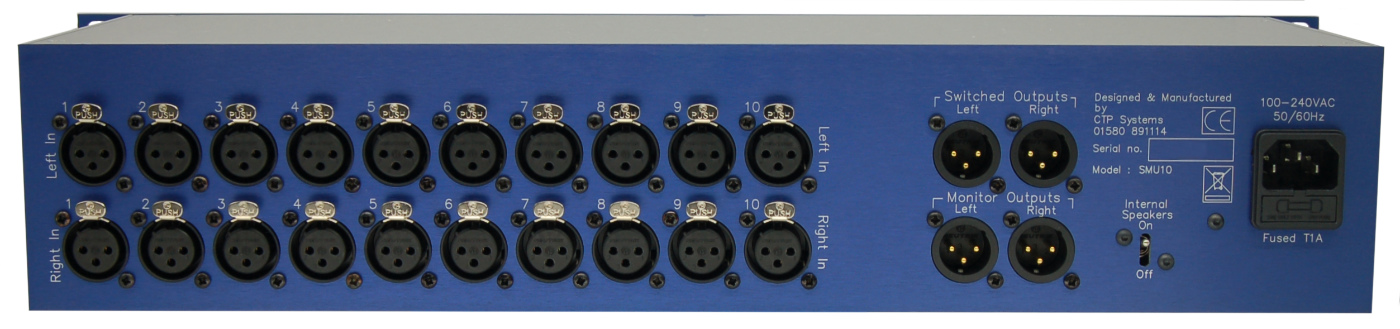

Stereo ten input monitoring / source switching unit with broadcast quality
PPM meters, a stereo phase meter and built in monitoring.
Features Include:
- Switched outputs available on the rear.
- Monitoring outputs available on the rear.
- Front panel volume control and speaker cut also control the monitoring
outputs.
- All XLR inputs and outputs.
- Rear panel speaker cut for the internal speakers for when the unit
is used with external power amplifier and speakers.
- Headphone socket accepts stereo and 316 jacks.
- Mono Switch.
- Balance control.
- 2U rack mount case.
