By popular request a Stereo version of our Prehear 1020, this unit allows
convenient monitoring of ten stereo inputs with the cut and line output
facilities common to our Prehear 1020.

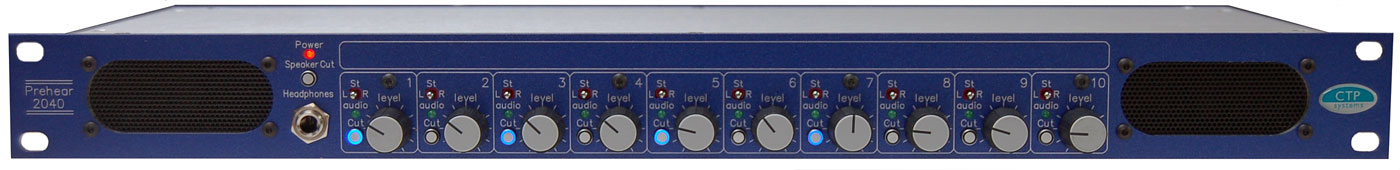

The unit has two loudspeakers and ten stereo input channels.
Input switches may be selected to act as mono to left, mono to right or cut left,cut right.
Each channel has an audio present (VOX) indicator, a volume control and a cut switch with bright blue illumination.
There is a speaker cut button with red illumination and a stereo headphone
socket suitable for stereo or 316 jacks.
Both loudspeaker amplifiers have built in limiters to protect the loudspeakers (and ears!)

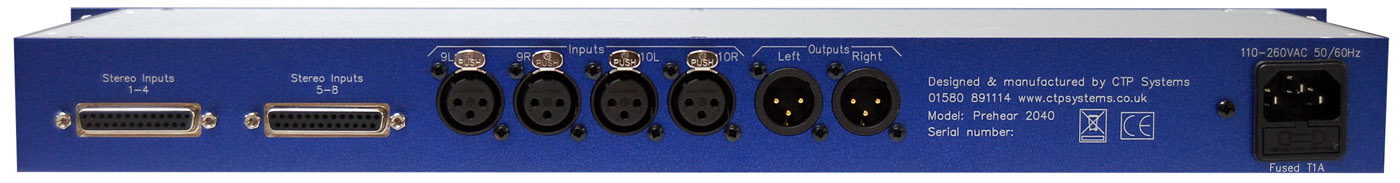

All inputs and outputs are on XLR and there are two line level outputs with switching following the left/right/stereo switches.
The unit has four stereo inputs on D25 number 1, another four on D25 number 2 and XLR inputs for stereo inputs 9 and 10.
Alternative connections may be specified as required.
The unit will operate on 110-240VAC with auto switching.
Dimensions: 1RU 160mm deep.
The Prehear 1020 is designed to cover all those 'listen' feeds required
by production. Pre-fade listen feeds of presenters, off air feeds, and
all those other bits and pieces that waste talkback matrix inputs can
be fed directly to these units.
The unit has two loudspeakers and ten input channels.
Each input may be switched to left, right, or both speakers.
Each channel has an audio present (VOX) indicator, a volume control and a cut switch with bright blue illumination.
There is a speaker cut button with red illumination and a stereo headphone
socket suitable for stereo or 316 jacks.
Both loudspeaker amplifiers have built in limiters to protect the loudspeakers.
All inputs and outputs are on XLR and there are two line level outputs with switching following the left/right/both switches.
The unit will operate on 110-240VAC with auto switching.
Dimensions: 1RU 160mm deep.
